HD CUBE


The Power of Small

Why do SMBs still purchase expensive and complex Network Video Recorders (NVR) – while economical and accessible surveillance solution comes in the form of the HD Cube NVR from Instek Digital? Instek Digital today is proudly to announce its HD Cube Network Video Recorder (NVR) – the perfect solution for todays distributed retail business model. When SMBs such as restaurants, convenience stores, gas stations, retails stores etc. - require a surveillance system – they need to consider various elements. What is their budget, what is the available space for the surveillance system and the expertise from the person that needs to operate the surveillance system? To meet these elements – Instek Digital introduces its next generation retail NVR. The HD Cube NVR is developed as an economical and space saving network video recorder.

Features Highlights:

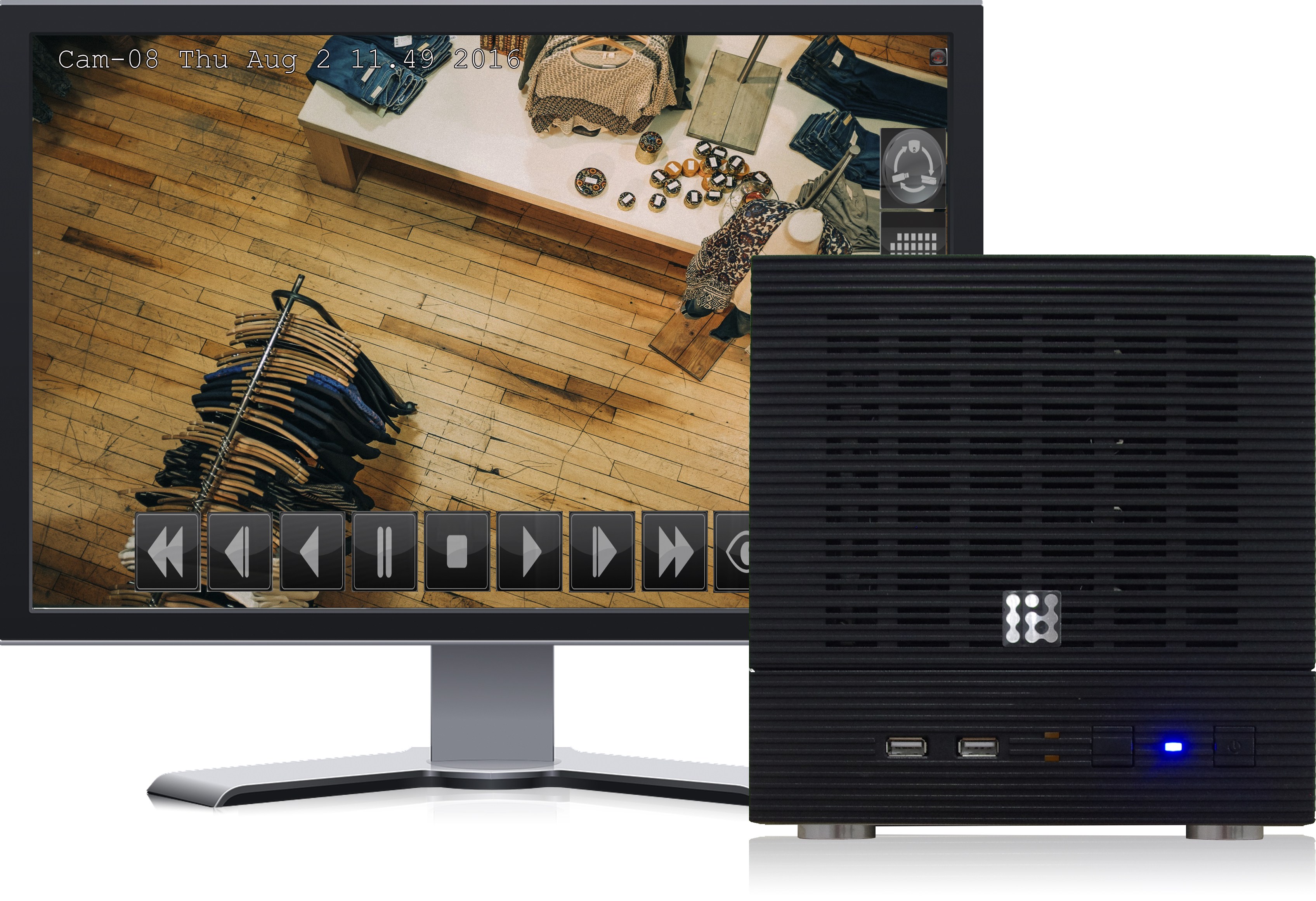

Instek Digital HD Cube including monitor

POWERFUL FEATURES


MULTIPLE LIVE VIEW

up to 16 channels D1 live and max. 1080P display resolution


MULTIPLE PLAYBACK VIEW

up to 16 channels


MONITOR RESOLUTION

max. 1920 x 1080


PATTERN & TOUR

easily run camera pattern & tour


INSTANT CONTROL

forward and backward video investigation by time


PTZ

control PTZ cameras directly from the local GUI


VIDEO SEARCH

video search by date and time


INSTANT EVENT NOTIFICATION

icon will be shown on screen and by clicking


AUDIO

supports audio recording


PERFORMANCE


Resolution Frame rate Throughput (Mbps) Recording (no. ch) Local live (no. ch) Remote live (no. ch) Remote playback (no. ch)
D1 (1 Mbps) 30 64 Mbps 16 16 32 16
Full HD (4 Mbps) 30 256 Mbps 16 2 32 16

COMPARISON


  ID HD Cube NVR Random brand*
Recording
Performance frame rate 30 fps @ full HD frame rate 30 fps @ D1 or VGA

Local display
Live view @ D1 (ch) 16 12
Playback (ch) 16 1
Local alarm management yes -
Digital view yes -

Remote client
ArgusView yes -
Synchronize playback yes -
Playback speed 64X 16X
* based on most occuring specifications among different brands in the market.
